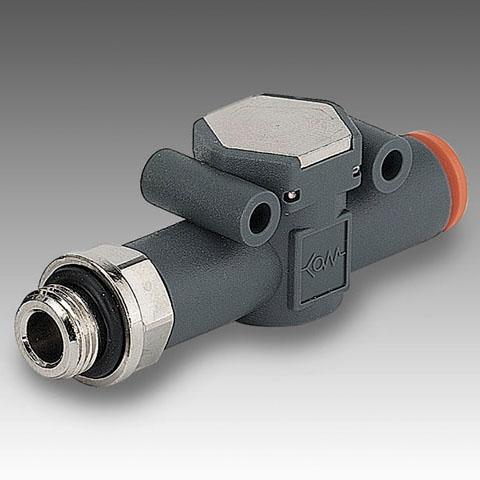

Non return valve VNR L1/8-Ø 4ID9064102
LINE ON LINE 1/8 - 4MM NRV
Weight: 30.070 GRM
Non return valve 1/8-Ø 4
| EAN code: | 8024986633351 |
| Short description: | Non return valve VNR L1/8-Ø 4 |
| Quantity per package: | 0 |
| Minimum order quantity: | 0 |
| Unit of measure: | items |
| . | |
| Body material | Technopolymer |
| Functional denomination | Non return valve in line |
| Inlet flow rate at 6.3 bar DP 1 bar (Nl/min) | 80 |
| Max temperature (°C) | 60 |
| Min temperature (°C) | -20 |
| Product's series | Series LINE ON LINE |
| Push-in fitting for pipe (Ø) | 4 |
| Suggested tube (Type) | Rilsan PA11-Nylon 6-Polyamide 12-Polypropylene |
| Thread type | Cylindrical |
| Threaded port | 1/8" |
