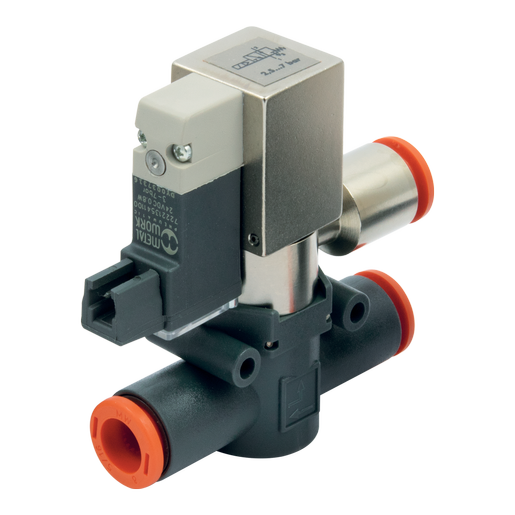

SOV L 3/2 NC 1/4-1/4-1/4ID9069216U
SOV L 3/2 NC Ø1/4-Ø1/4-Ø1/4
Weight: 58.516 GRM
SOV L 3/2 NC 1/4-1/4-1/4
| EAN code: | 8024986346527 |
| Short description: | SOV L 3/2 NC 1/4-1/4-1/4 |
| Quantity per package: | 0 |
| Minimum order quantity: | 0 |
| Unit of measure: | items |
| . | |
| Body material | Technopolymer |
| Coefficent b (bar/bar) | 0,145 |
| Conductance (Nl/min x b) | 95,8 |
| Functional denomination | Solenoid 3/2 valve in line |
| Inlet flow rate at 6.3 bar DP 1 bar (Nl/min) | 380 |
| Inlet flow rate at 6.3 bar DP 0.5 bar (Nl/min) | 270 |
| Max input pressure (bar) | 007 |
| Max temperature (°C) | 60 |
| Min input pressure (bar) | 2.5 |
| Min temperature (°C) | -20 |
| Power | 1.2 W |
| Product's series | Series LINE ON LINE |
| Push-in fitting for pipe (Ø) | 10 |
| Suggested tube (Type) | Rilsan PA11-Nylon 6-Polyamide 12-Polypropylene |
| Voltage range in DC (VDC) | 24VDC |
