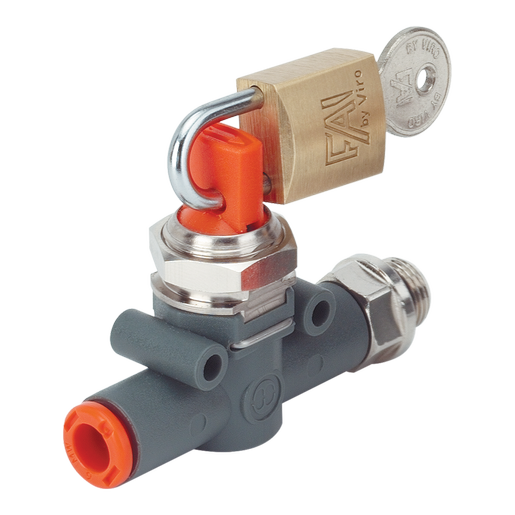

V2V L unidir. Ø 6-1/8 lockableID9065308
LINE ON LINE SHUT OFF 6 X 1/8 V2V
Weight: 75.378 GRM
2 ways valve vie unidirectional Ø 6-1/8 lockable
| EAN code: | 8024986295863 |
| Short description: | V2V L unidir. Ø 6-1/8 lockable |
| Quantity per package: | 0 |
| Minimum order quantity: | 0 |
| Unit of measure: | items |
| . | |
| Body material | Technopolymer |
| Exhaust flow-rate at 6.3 bar (Nl/min) | 110 |
| Functional denomination | Shut off 2/2 valve in line |
| Inlet flow rate at 6.3 bar DP 1 bar (Nl/min) | 280 |
| Max input pressure (bar) | 010 |
| Max temperature (°C) | 60 |
| Min temperature (°C) | -20 |
| Product's series | Series LINE ON LINE |
| Push-in fitting for pipe (Ø) | 6 |
| Suggested tube (Type) | Rilsan PA11-Nylon 6-Polyamide 12-Polypropylene |
| Thread type | Cylindrical |
| Threaded port | 1/8" |
