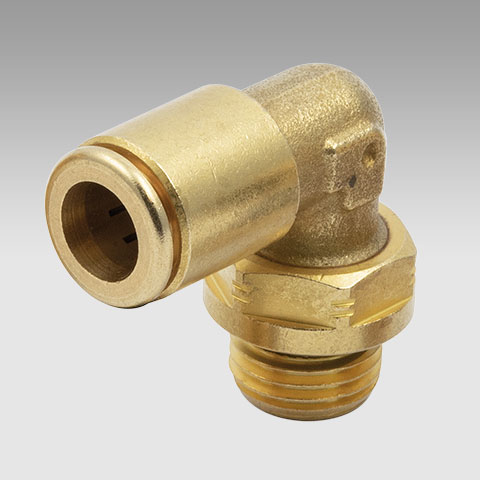

R31 F-NSF ø10 1/2ID2F31065
F-NSF 10 - 1/2 ELBOW PARA
Gewicht: 71.908 GRM
Automatic Fitting R31 F-NSF ø10 coupling 1/2
| EAN-Code: | 8056686202810 |
| Kurze Beschreibung: | R31 F-NSF ø10 1/2 |
| Mindest. Liefermenge | 25 |
| Mindest. Bestellmenge | 25 |
| Maßeinheit: | Stück |
| . | |
| Eingangsdruck, maximal(bar) | 016 |
| Eingangsdruck, minimal (bar) | -00,99 |
| Funktionsbezeichnung | Drehbares männliches L-Fitting |
| Gehäusematerial | Messing |
| Gewindeanschluss | 1/2'' |
| Produktreihe | Automatic fitting "R" series food |
| Push-in Verschraubung für Anschluss (Ø) | 10 |
| Temperatur, maximal (°C) | 150 |
| Temperatur, minimal (°C) | -20 |
| Thread type | Cylindrical gas |
Push-in fittings certificate Series F-NSF PLUS MOCA conformity declaration
Official listing: NSF 169
Certificate: NSF 169-1X000
Certificate: NSF 169-1X001
Product conformity declaration - fittings
PED declaration
RoHS and WEEE declarations
REACH declaration
EAC - Metal Work generic certificate [not for ISO 15552 ILT]
CONFLICT MINERALS declaration
Official listing: NSF 169
Certificate: NSF 169-1X000
Certificate: NSF 169-1X001
Product conformity declaration - fittings
PED declaration
RoHS and WEEE declarations
REACH declaration
EAC - Metal Work generic certificate [not for ISO 15552 ILT]
CONFLICT MINERALS declaration
